Silent macerator for floor-standing WC, 400 W
Aquamatix Silencio 3
Silent macerator pump. This quiet macerating solution is suitable for use in a bathroom, en-suite or cloakroom to remove waste from a toilet and other sanitary fixtures. An integrated carbon filter prevents odours. The convenient service access panel allows for easy maintenance.
Toilet
Washbasin
Shower
Bathtub
Features
- Silent macerator
- Toilet inlet, two side inlets
- Discharge up to 80m horizontally, 8m vertically
- Easy maintenance through service access panel

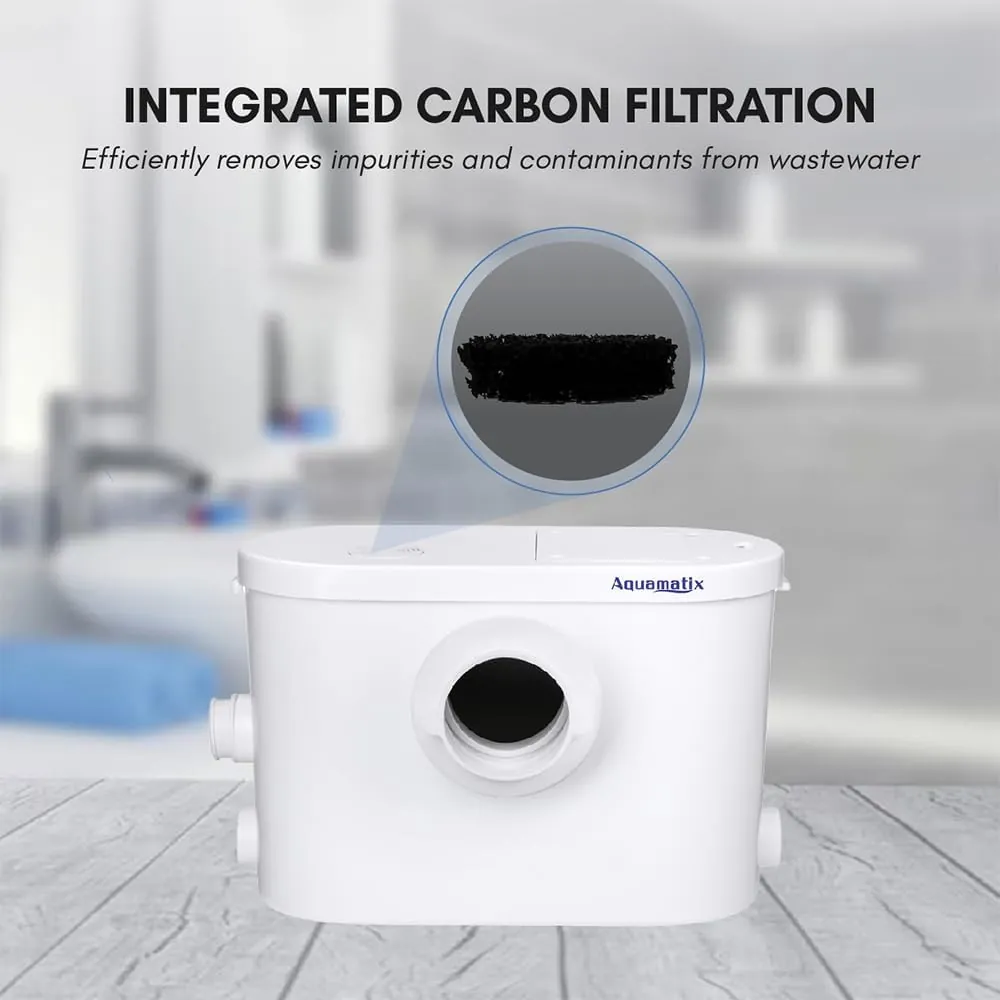

- Integrated carbon filter
Connections
- Vent hole
- Service access panel
- Outlet discharge pipe
- Sanitary fixture inlet
- Sanitary fixture inlet
- Toilet inlet
Specifications
| Power Consumption | 400W |
|---|---|
| Power Supply | 220V - 240V / 50Hz |
| IP Rating | IPx4 |
| Max. Input Flow Rate | 145 L/min |
| Max. Water Temperature | 65 °C |
| Noise Level | 35 - 50 dB |
| Horizontal Discharge | 80 m |
| Vertical Discharge | 8 m |
| Dimensions | 416 mm x 244 mm x 265 mm |
| Carbon Filter | Yes |
| Repair Panel | Yes |

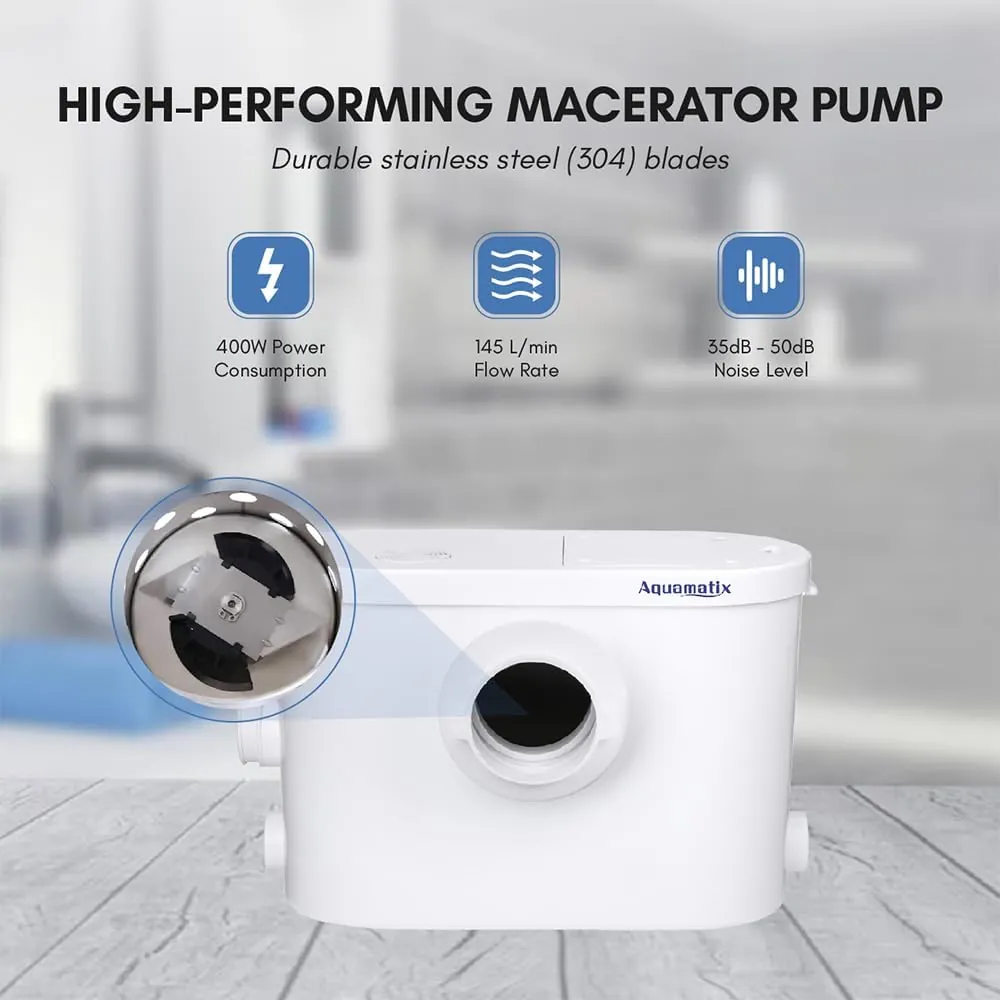

| Blade Material | Stainless Steel |
| Inlet | 1 Toilet Inlet: 100mm · 2 Inlets: 40mm |
| Outlet | 23/28/32/44 mm |
| Net Weight | 7.0 kg |
| Accessories | 1 x Non return Valve · 2 x Side Inlet Cover · 2 x Side Inlet Connector · 8 x Jubilee Clip · 2 x Screw · 2 x Housing Feet · 1 x Toilet Inlet Cover |

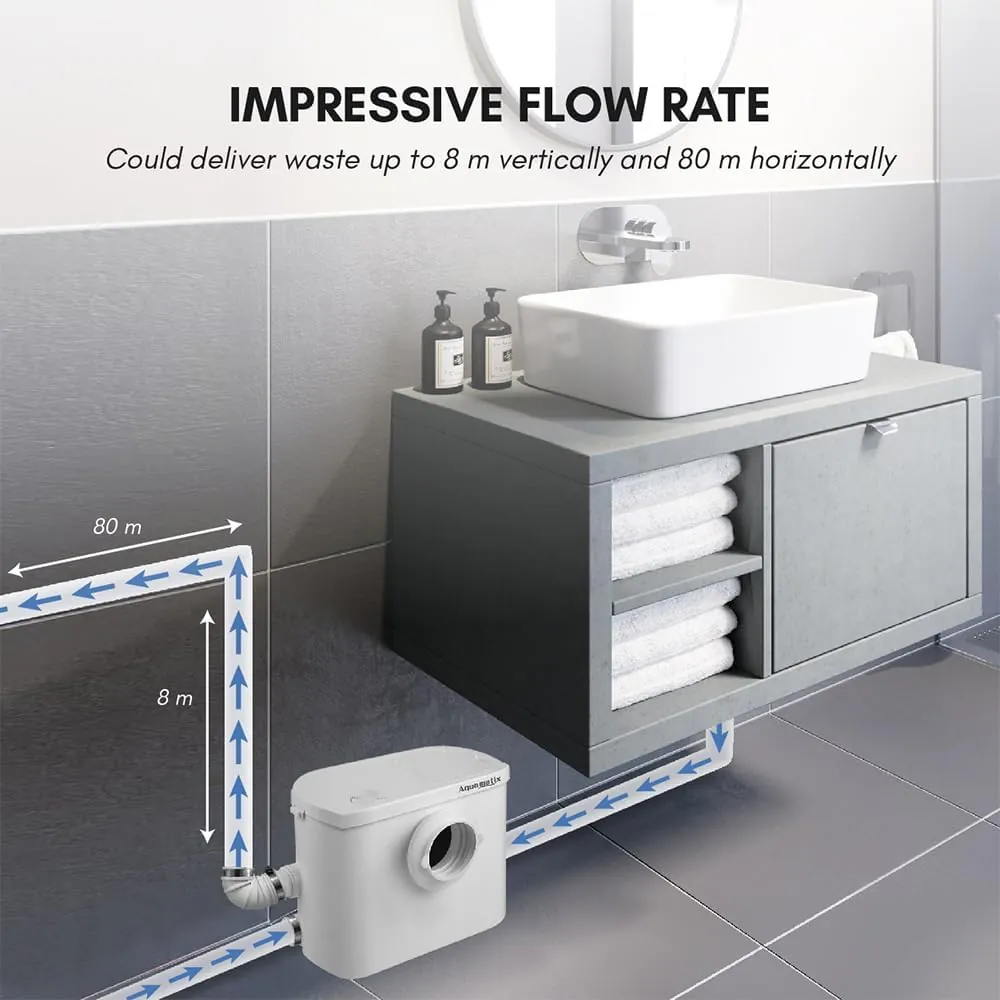

Check before you buy The pump lifts waste 8 m straight up, or 80 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 8 m, choose a model with more lift.
Dimensions
In the box
1 x Non return Valve · 2 x Side Inlet Cover · 2 x Side Inlet Connector · 8 x Jubilee Clip · 2 x Screw · 2 x Housing Feet · 1 x Toilet Inlet Cover
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
