Spare parts and consumables
Genuine parts for every Aquamatix macerator. The carbon filter should be replaced once a year; everything else lasts the life of the unit unless something that should not go down a toilet went down it.

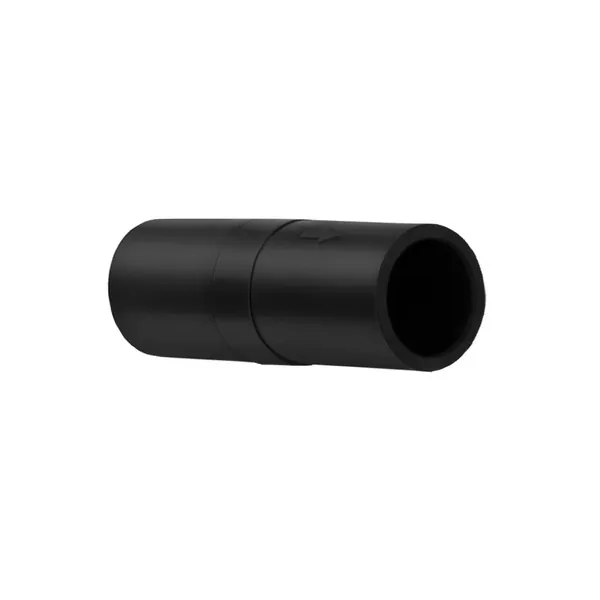

Non-return valve, black rubber
HMC01-100-036
Stops pumped water from running back into the tank. A worn or torn valve lets the pump start again by itself and can make the unit smell between uses.
Fits: S600
In stock

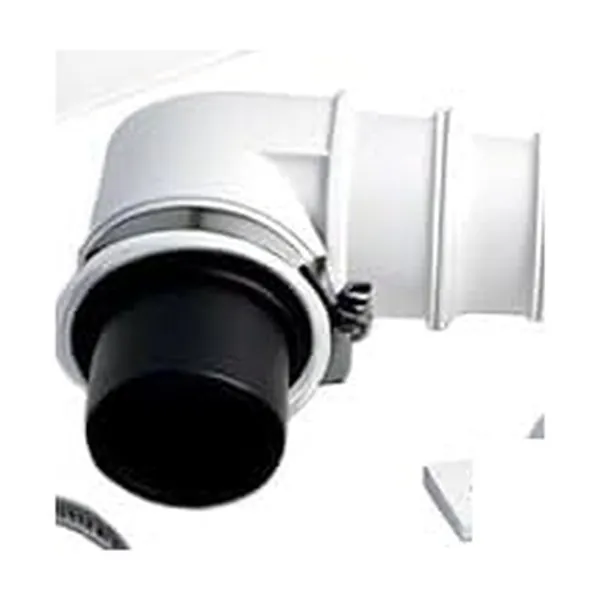

Non-return valve with rubber elbow
HMC01-XX-015
Stops pumped water from running back into the tank. A worn or torn valve lets the pump start again by itself and can make the unit smell between uses.
Fits: H400L, H400L Side, Silencio S
In stock
Non-return valve
HMC01-250-143
Stops pumped water from running back into the tank. A worn or torn valve lets the pump start again by itself and can make the unit smell between uses.
Fits: S250, Duscha
In stock

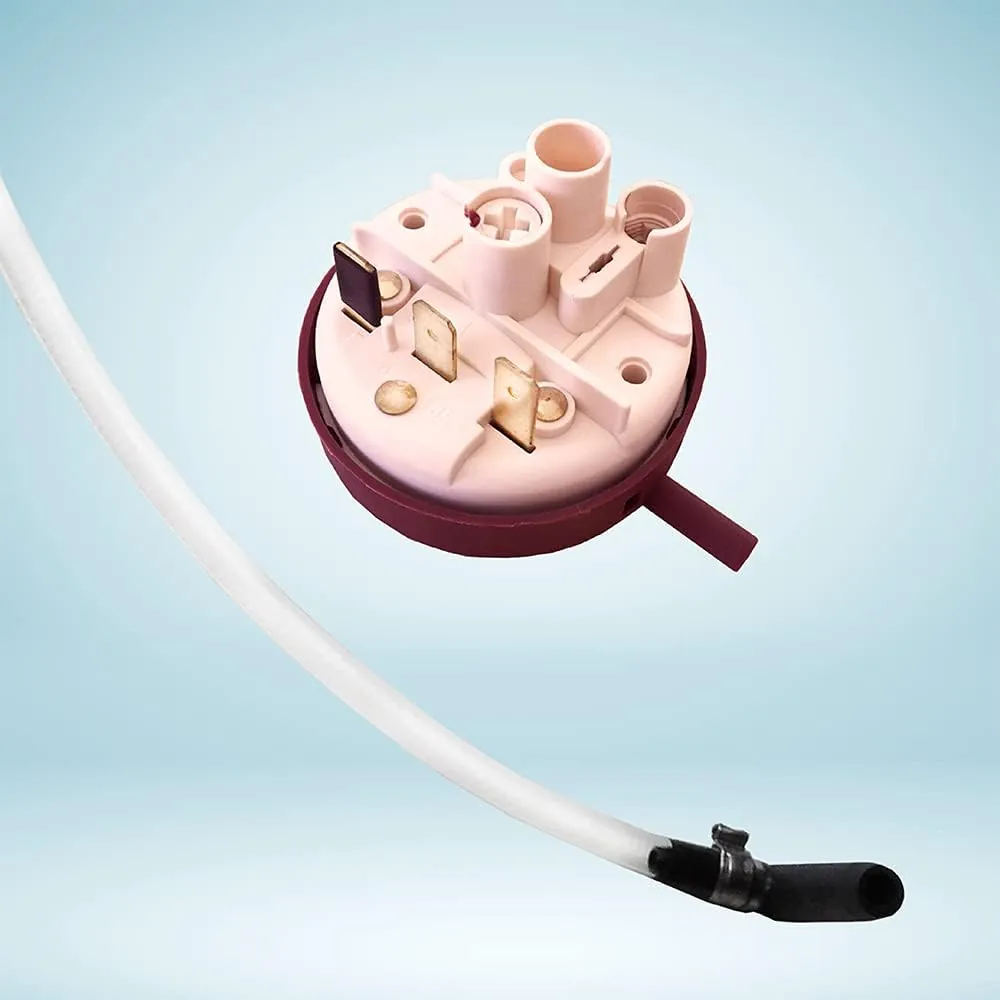

Pressure switch with tube
HMC01-XX-007
Senses the water level in the tank through the clear tube and switches the pump on and off. If the pump no longer starts, or will not stop, this switch is the usual cause.
Fits: S600
In stock

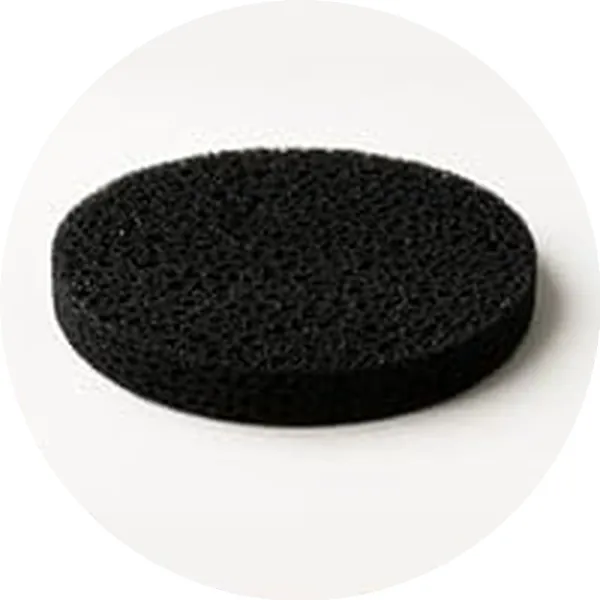

Carbon filter for Cubo
AQUA-CUBO-P05
The activated-carbon filter in the air vent that stops the smell. Replace it once a year; a saturated filter is the most common cause of a macerator that smells.
Fits: Cubo
Sold out
Carbon filter for H400L
HMC01-400-003
The activated-carbon filter in the air vent that stops the smell. Replace it once a year; a saturated filter is the most common cause of a macerator that smells.
Fits: H400L, H400L Side
Sold out
Carbon filter for Silencio
AQUA-SIL-S-06
The activated-carbon filter in the air vent that stops the smell. Replace it once a year; a saturated filter is the most common cause of a macerator that smells.
Fits: Silencio S, Silencio 2, Silencio 3
Sold out
Carbon filter for S400P
HMC01-400-UP-07
The activated-carbon filter in the air vent that stops the smell. Replace it once a year; a saturated filter is the most common cause of a macerator that smells.
Fits: S400P
Sold out
Shipping: Belgium EUR 5,95, Netherlands EUR 6,95, Germany EUR 6,95. Free over EUR 60,00. Dispatched from Belgium, usually within one working day.
For any part not listed here, send the model name and the part number from the exploded view and we will quote it.
Parts Included
Height of Pumping
Device Dimensions
The flow rate of the pump
The exploded view
1. Plastic bottom housing3. Rubber toilet connector
4. Housing sealing
5. Plastic lid
6. Wire + plug
7&9. Plastic small lid
10. Mic switch
11. Motor repair lid
12. Carbon filter
13. Switch housing
14. Plastic clip for switch
15+16.Switch case bottom
17. Plastic filter
18. Blade + blade rack
19. Motor
20. Impeller
21. Diversion plate
22. Diversion pipe
