Macerator with grinder, 600 W, 10 m lift
Aquamatix S600

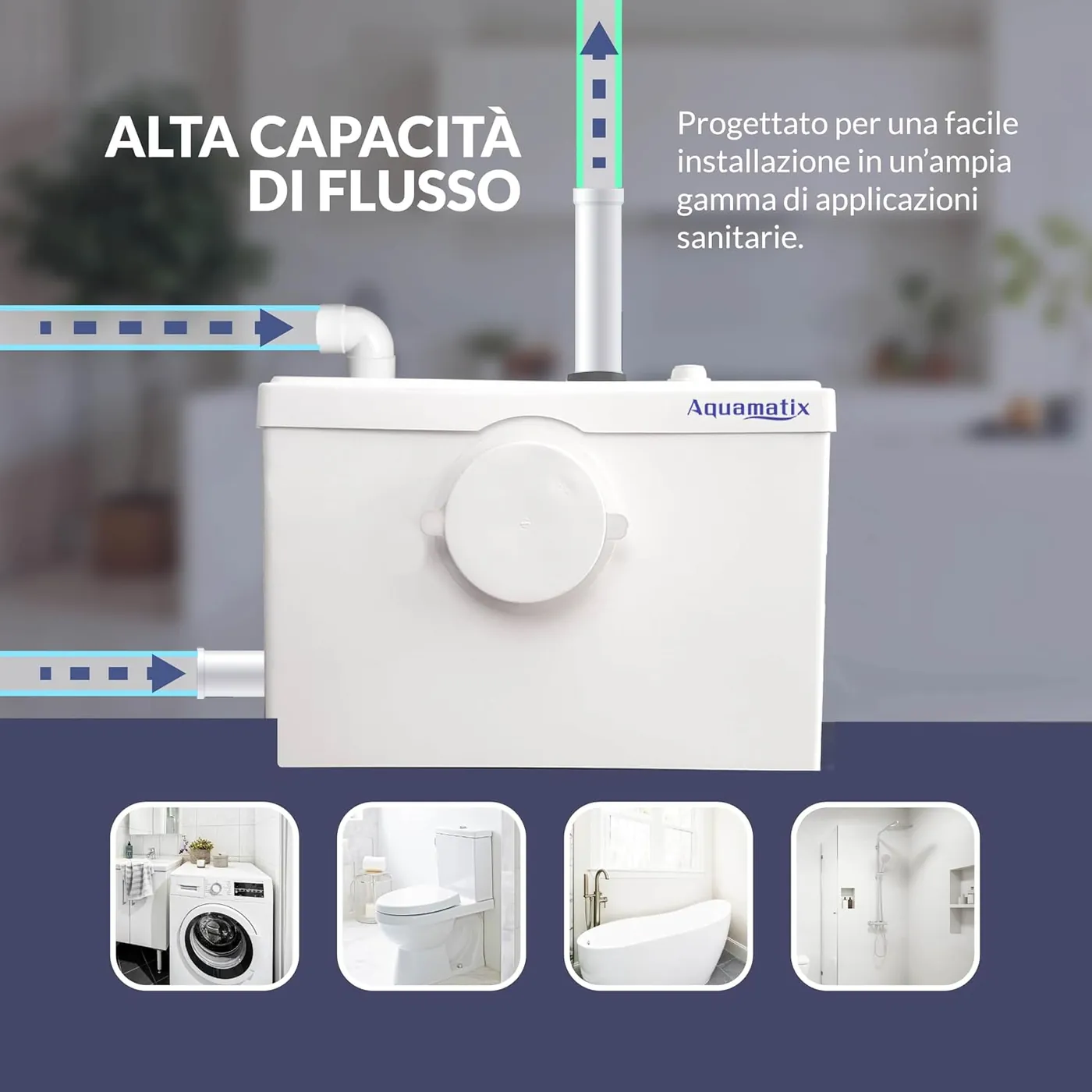

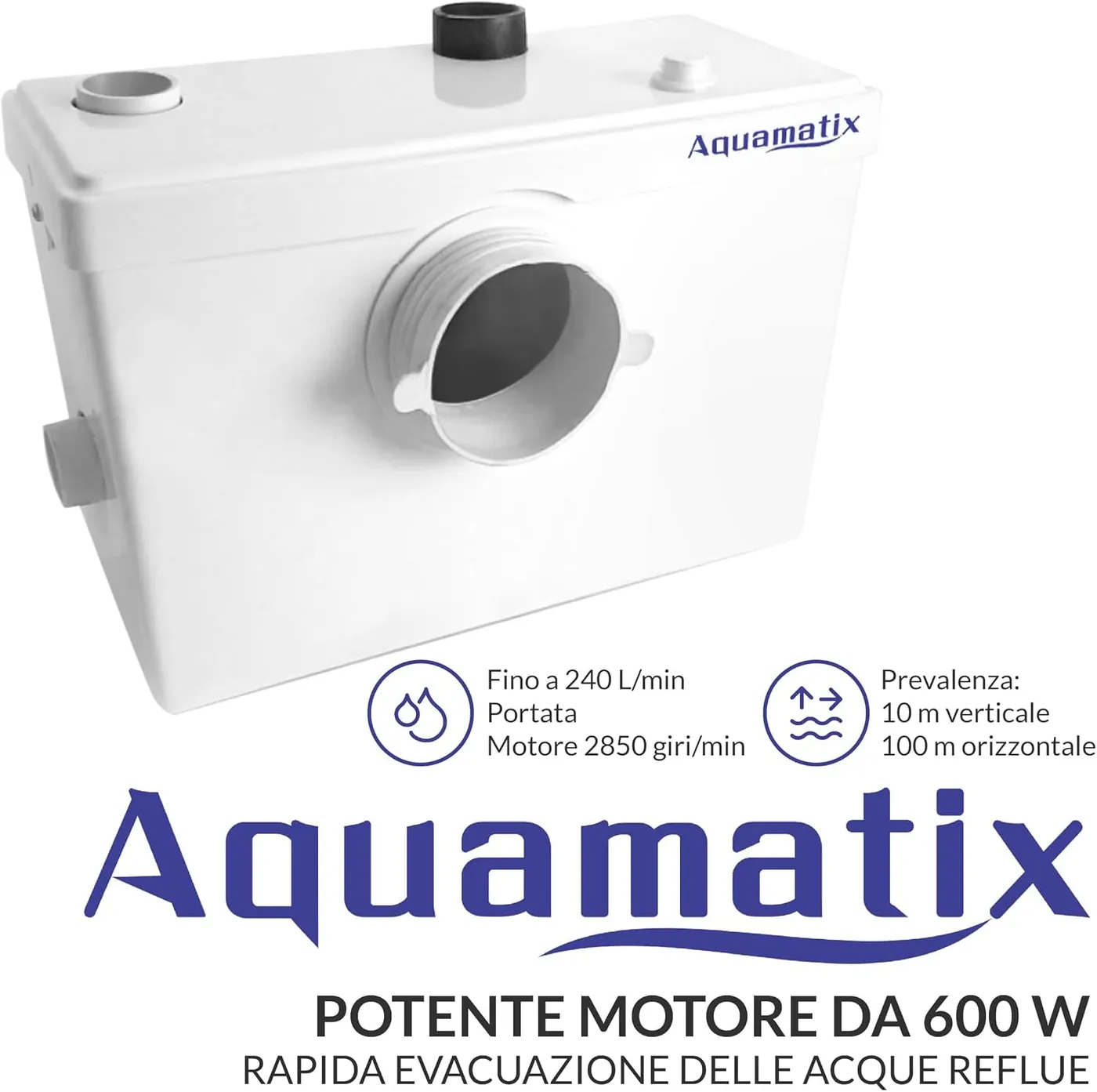

The strongest pump in the range. A 600 W motor with a grinder unit shreds toilet waste and paper and lifts it up to 10 m, for basements, long pipe runs or installations without any natural fall. Three inlets, 240 L/min, hot waste water up to 90 °C from a washing machine, rubber feet against vibration and a manual switch for tests and maintenance.
Toilet
Washbasin
Shower
Bathtub
Washing machine
Kitchen sink
Model naming: Aquamatix S600 = SANIGO600 (SANIGO). Model names
Features
- 600 W motor with integrated grinder unit
- Lifts up to 10 m vertically, 100 m horizontally
- Up to 240 L/min (14,400 L/h)
- Three inlets: toilet, shower or bath, basin or kitchen sink
- Hot waste water up to 90 °C (up to 2 h), suitable for washing machines
- Rubber feet against vibration, manual override switch
- 398 × 202 × 285 mm, 7.5 kg, 40 mm non-return valve included
Specifications
| Motor power | 600 W |
|---|---|
| Power supply | 220–240 V / 50 Hz |
| Max. inflow | 240 L/min |
| Vertical discharge | 10 m |
| Horizontal discharge | 100 m |
| Max. water temperature | 90 °C |
| Inlets | 1 × toilet, 2 × side |
| Outlet | 40 mm |

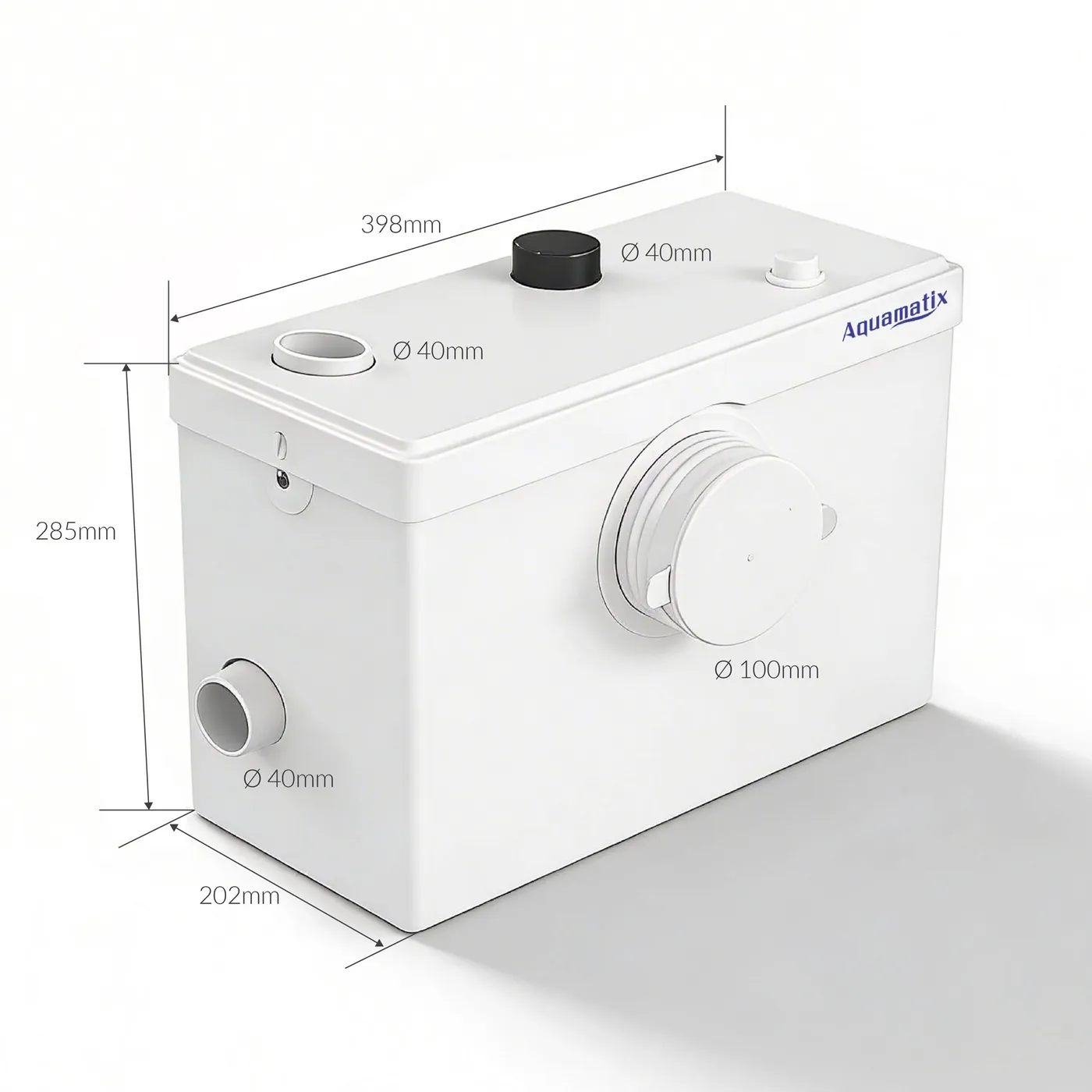

| Dimensions (L × W × H) | 398 × 202 × 285 mm |
| Net weight | 7.5 kg |
| In the box | Non-return valve 40 mm, toilet inlet cover, 2 side inlet covers, hose clips 90–110 mm |
Check before you buy The pump lifts waste 10 m straight up, or 100 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 10 m, choose a model with more lift.
In the box
Non-return valve 40 mm, toilet inlet cover, 2 side inlet covers, hose clips 90–110 mm
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
