Shower and basin pump, 250 W, 2 inlets
Aquamatix S250
A flat, quiet grey-water pump for a shower, basin, bath or washing machine where there is no fall to the drain. Two inlets, 100 L/min, pumps 8 m up or 80 m sideways, only 145 mm high so it fits under a shower tray or in a vanity unit. Starts by itself when water arrives. No toilet connection.
Shower
Washbasin
Bathtub
Washing machine
Model naming: Aquamatix S250 = SANIGO 250 Mini (SANIGO). Model names
Features

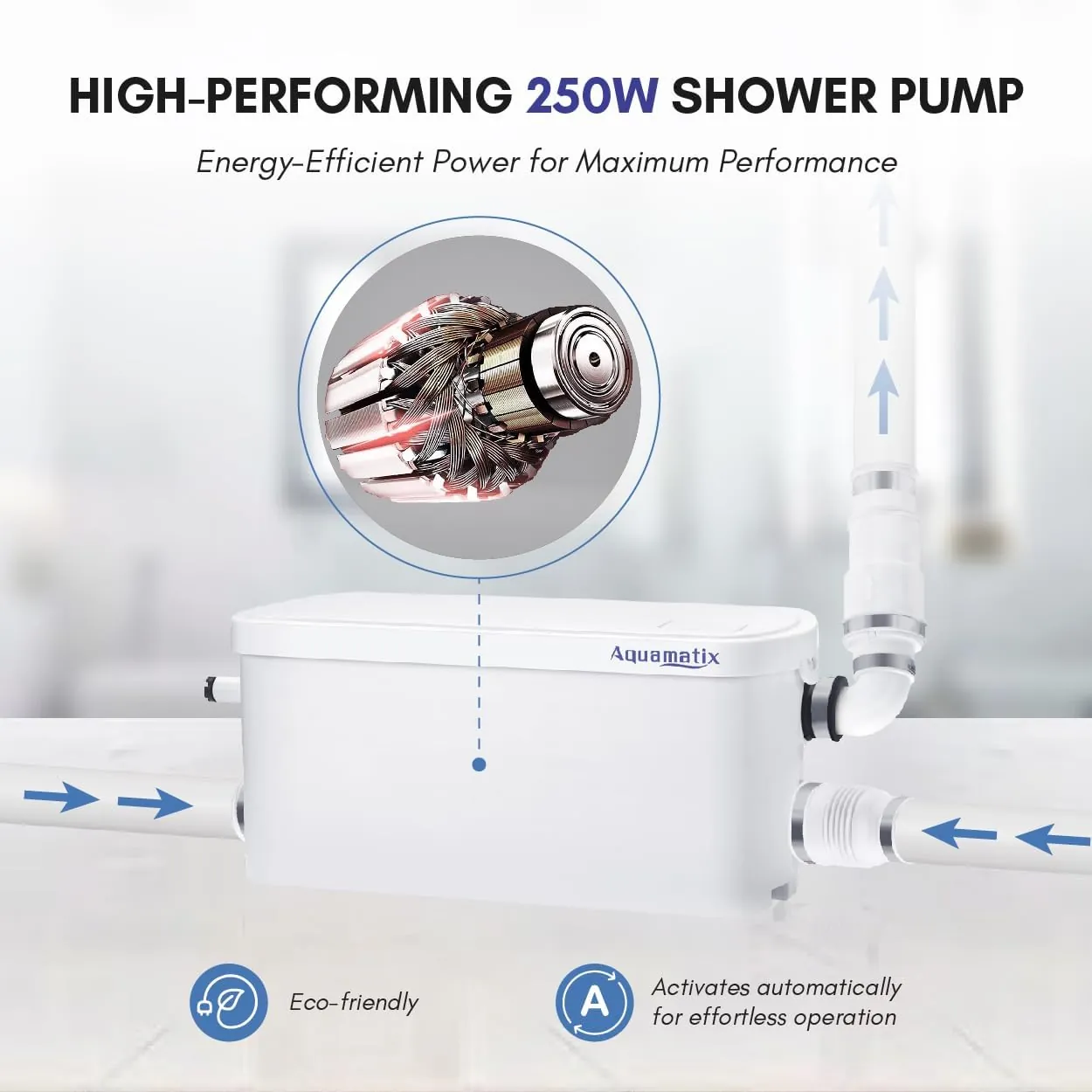

- 250 W, 30–40 dB: the quietest pump in the range

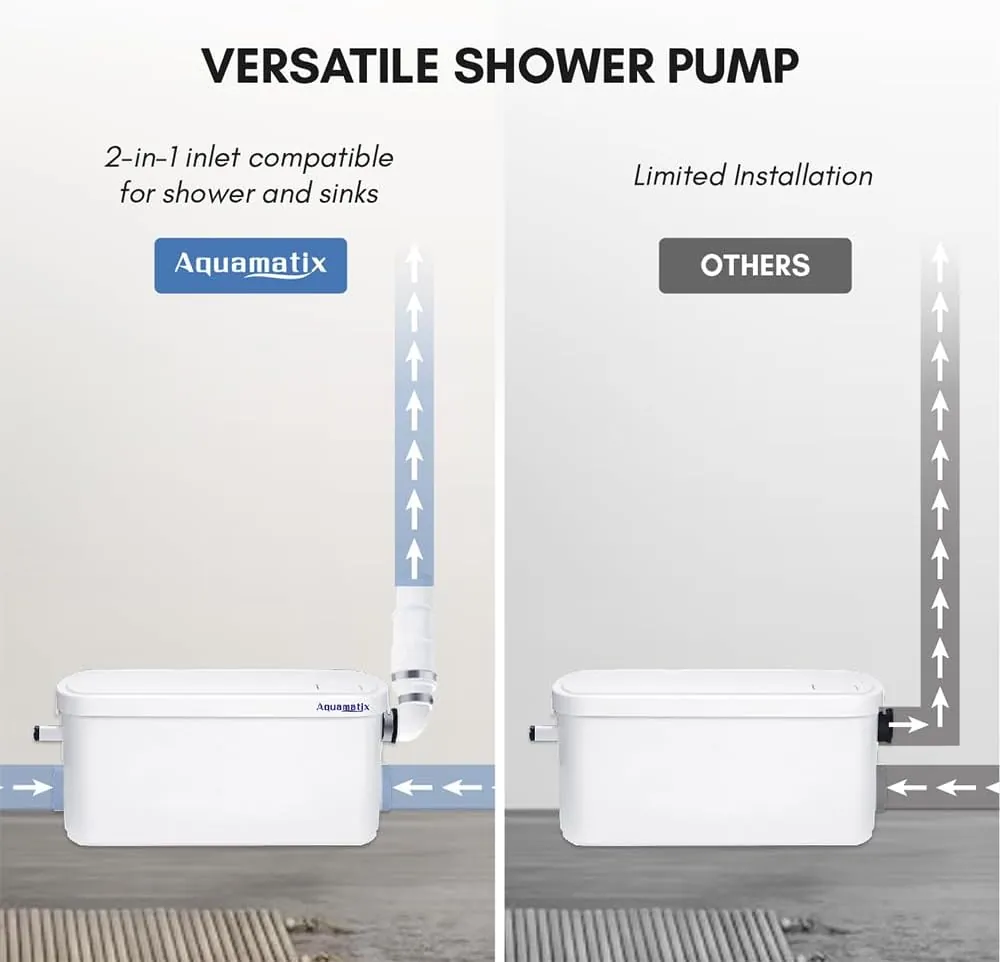

- Two inlets: shower plus basin, bath or washing machine

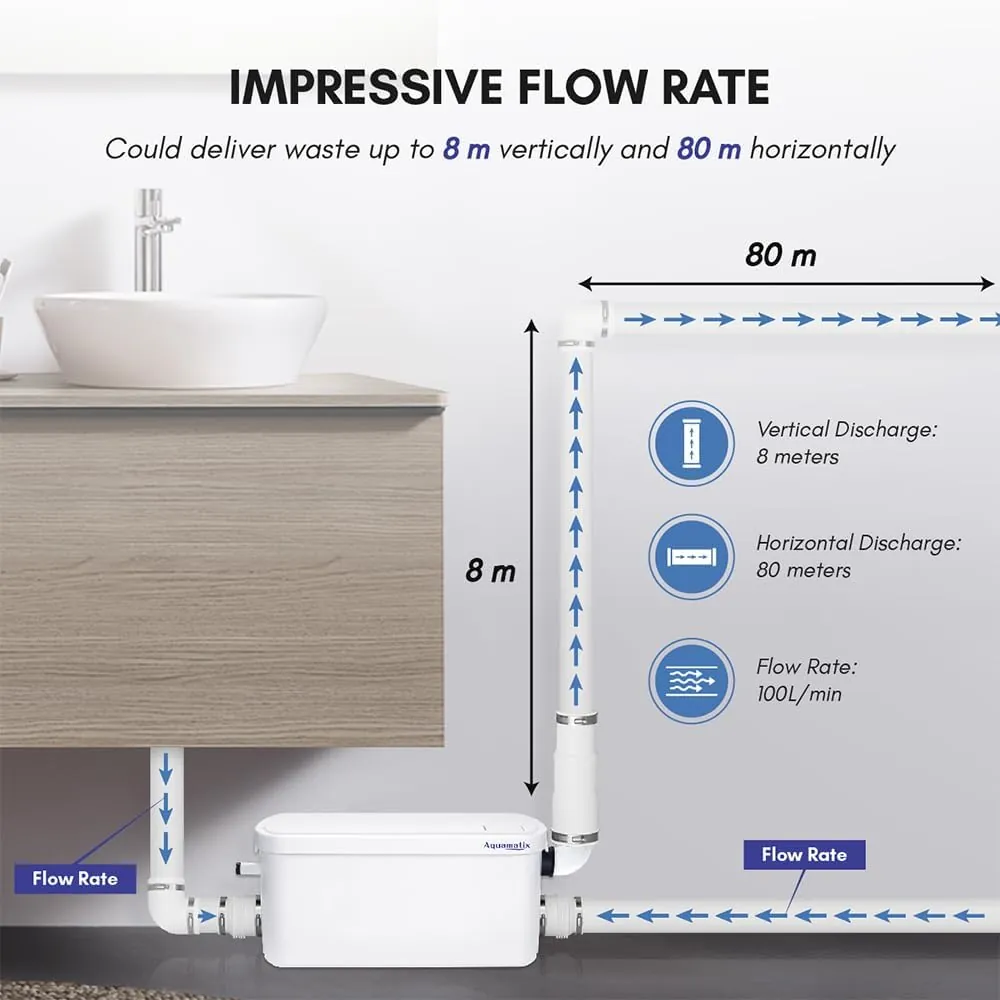

- Pumps 8 m vertically and 80 m horizontally, 100 L/min
- Only 145 mm high: fits under a shower tray
- Water up to 75 °C
- Automatic start by float switch, low standby consumption
- Non-return valve 23/28 mm, inlet cover, 2 inlet connectors and clips in the box
Specifications
| Motor power | 250 W |
|---|---|
| Power supply | 220–240 V / 50 Hz |
| Max. inflow | 100 L/min |
| Vertical discharge | 8 m |
| Horizontal discharge | 80 m |
| Noise level | 30–40 dB |
| Max. water temperature | 75 °C |
| Inlets | 2 × side 40 mm |
| Outlet | 23 / 28 mm |
| Dimensions (L × W × H) | 311 × 143 × 145 mm |
| In the box | Non-return valve 23/28 mm, side inlet cover, 2 side inlet connectors, 4 hose clips |
Check before you buy The pump lifts waste 8 m straight up, or 80 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 8 m, choose a model with more lift.
In the box
Non-return valve 23/28 mm, side inlet cover, 2 side inlet connectors, 4 hose clips
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
