Macerator for toilet, basin and shower, 400 W
Aquamatix H400L
Our best-selling macerator. A 400 W motor with a cutting blade takes the waste from one toilet and up to two more fixtures and pumps it 8 m up or 80 m sideways. The carbon-filter vent means no smell and no external venting. Automatic start on flush, quiet enough for a bathroom next to a bedroom.
Toilet
Washbasin
Shower
Bathtub
Washing machine
Features

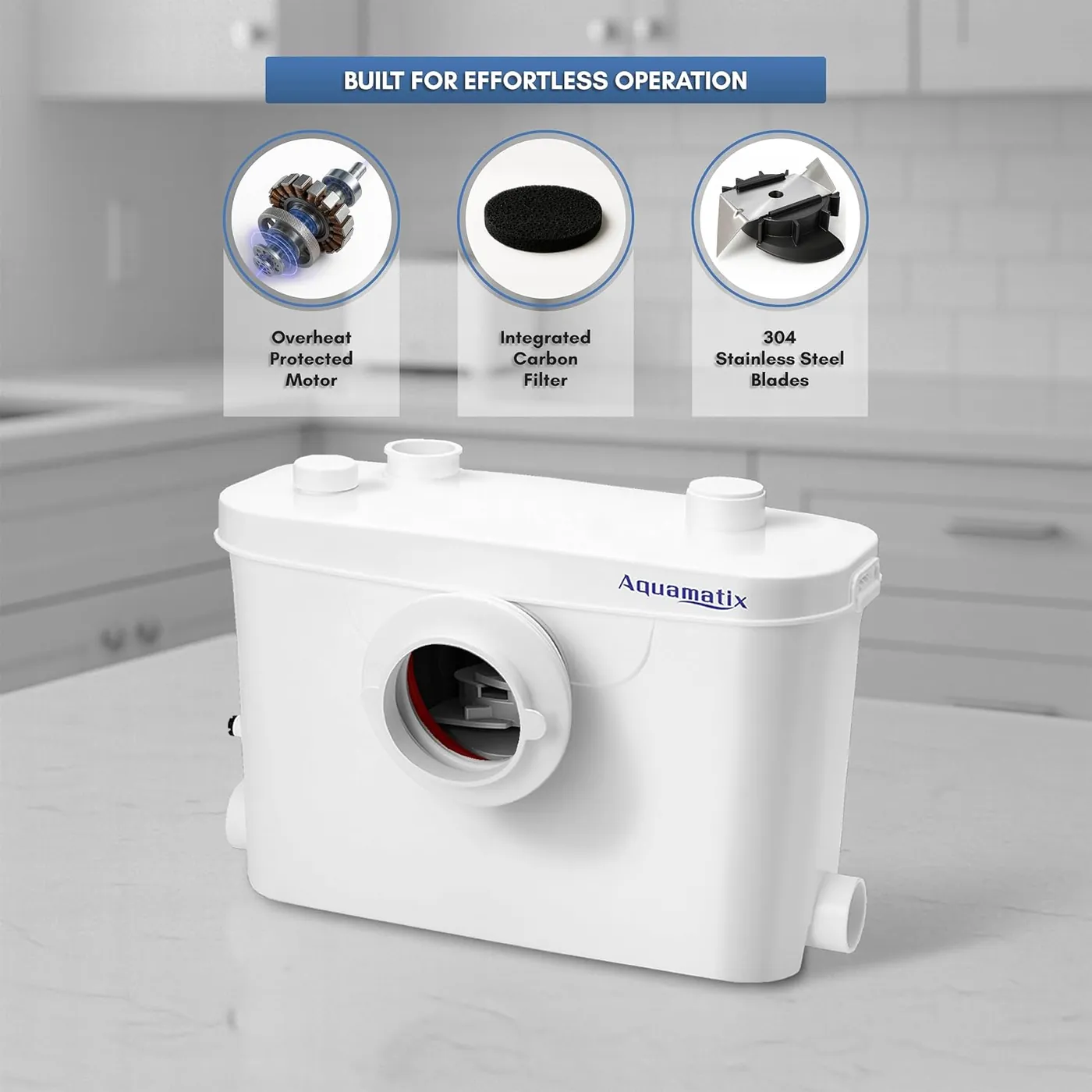

- 400 W motor with stainless steel cutting blade

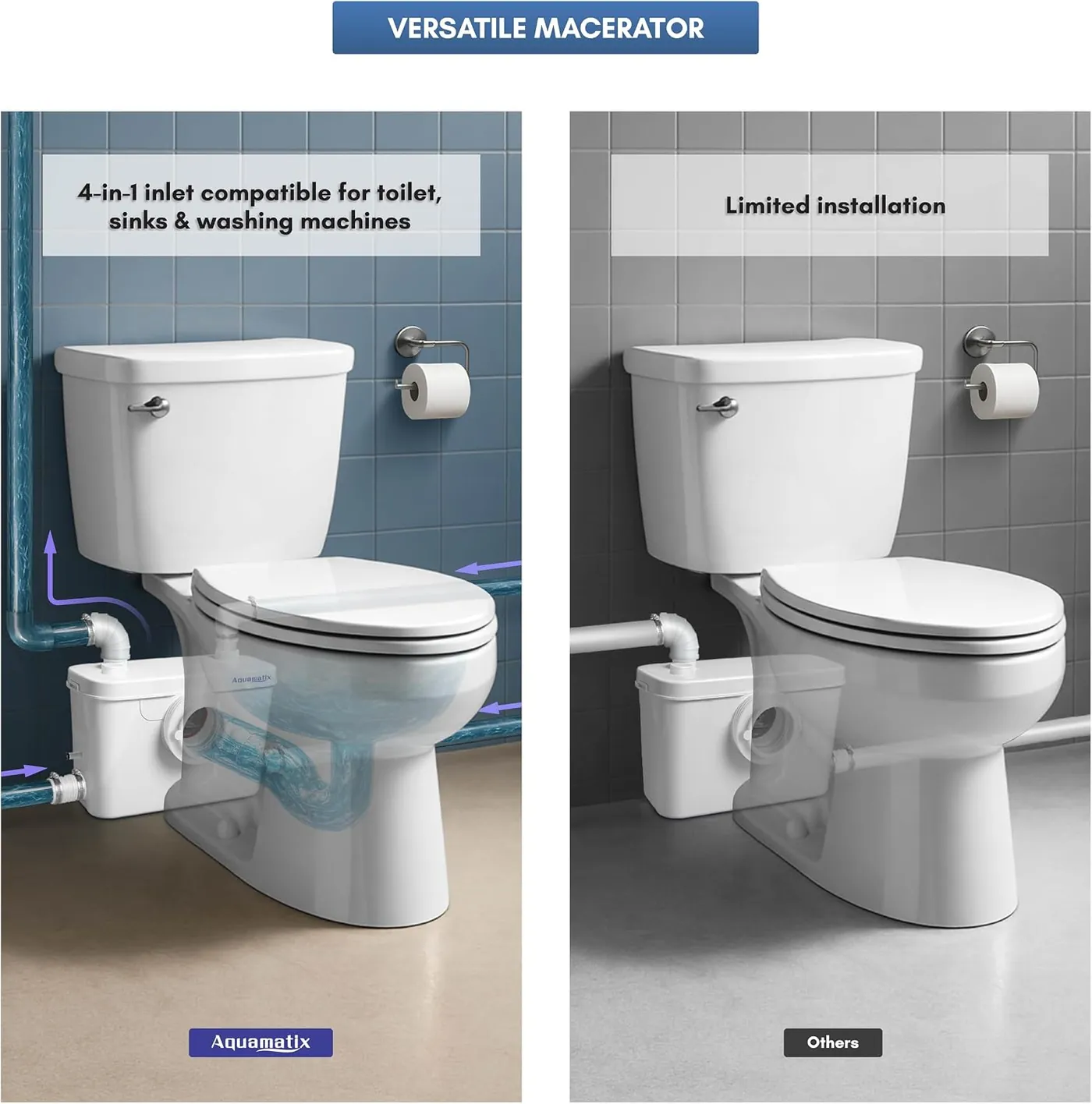

- Toilet inlet plus two side inlets (basin, shower, bath, washing machine)
- Pumps up to 8 m vertically and 80 m horizontally
- Up to 100 L/min inflow
- Carbon filter vent, no external venting needed
- Automatic start via float switch, low standby consumption
- Non-return valve and all connectors in the box
Specifications
| Motor power | 400 W |
|---|---|
| Power supply | 220–240 V / 50 Hz |
| Max. inflow | 100 L/min |
| Vertical discharge | 8 m |
| Horizontal discharge | 80 m |
| Carbon filter | ✓ |
| Inlets | 1 × toilet 100 mm, 2 × side 40 mm |
| Outlet | 25 / 32 / 40 mm |
| Dimensions (L × W × H) | 422 × 132 × 267 mm |
| In the box | Non-return valve 25/32/40 mm, toilet inlet cover, 2 side inlet covers, 2 side inlet connectors, 7 hose clips |
Check before you buy The pump lifts waste 8 m straight up, or 80 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 8 m, choose a model with more lift.
In the box
Non-return valve 25/32/40 mm, toilet inlet cover, 2 side inlet covers, 2 side inlet connectors, 7 hose clips
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
