Macerator for wall-hung WC, side toilet inlet, 400 W
Aquamatix H400L Side
The H400L for wall-hung toilets. The toilet inlet is on the side, so the unit sits inside the frame behind a wall-hung WC and still takes a shower, basin, bath or washing machine on its two other inlets. 400 W, 100 L/min, 6.5 m vertical lift, carbon filter.
Wall-hung WC
Washbasin
Shower
Bathtub
Washing machine
Features
- Side toilet inlet for wall-hung and back-to-wall WCs

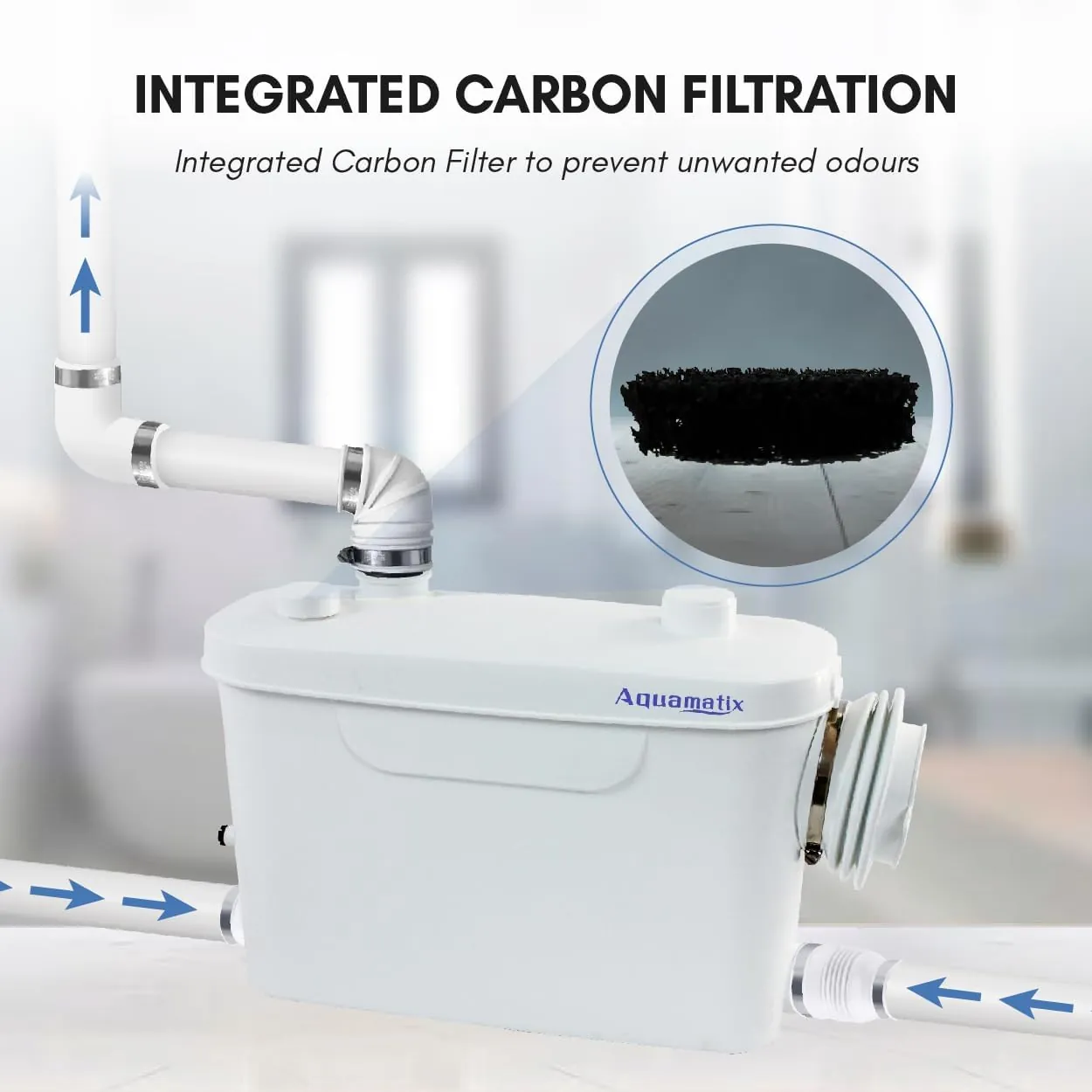

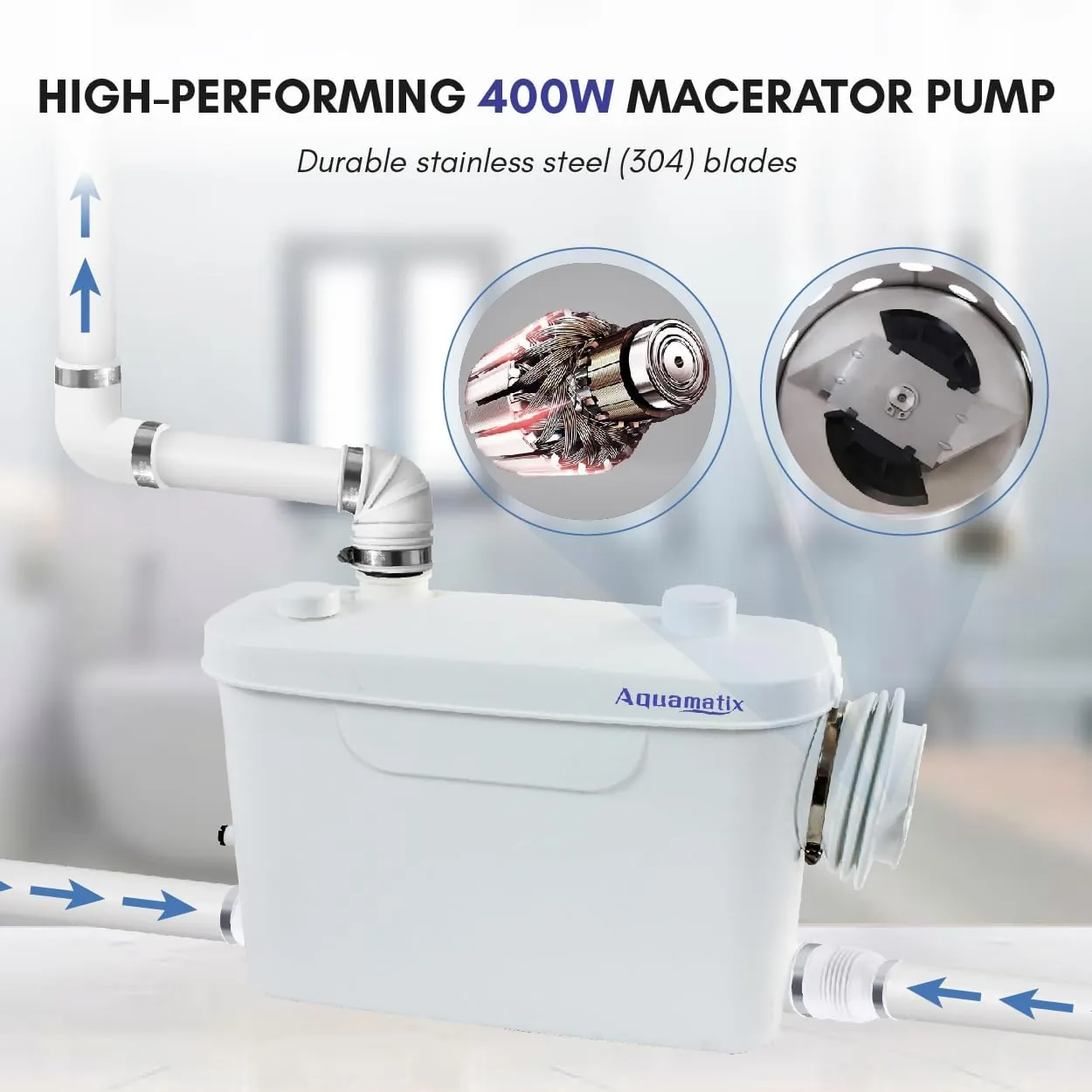

- 400 W motor, cutting blade, carbon filter vent
- Two extra inlets for shower, basin, bath or washing machine
- Pumps up to 6.5 m vertically and 65 m horizontally
- 100 L/min inflow, 35–45 dB, water up to 80 °C
- 479 × 168 × 267 mm, 5.8 kg
Specifications
| Motor power | 400 W |
|---|---|
| Power supply | 220–240 V / 50 Hz |
| Max. inflow | 100 L/min |
| Vertical discharge | 6.5 m |
| Horizontal discharge | 65 m |
| Noise level | 35–45 dB |
| Max. water temperature | 80 °C |
| Carbon filter | ✓ |
| Inlets | 1 × toilet (side) 100 mm, 2 × side 40 mm |
| Outlet | 25 / 32 / 40 mm |
| Dimensions (L × W × H) | 479 × 168 × 267 mm |
| Net weight | 5.8 kg |
| In the box | Non-return valve 25/32/40 mm, toilet inlet cover, 2 side inlet covers, 2 side inlet connectors, 7 hose clips |

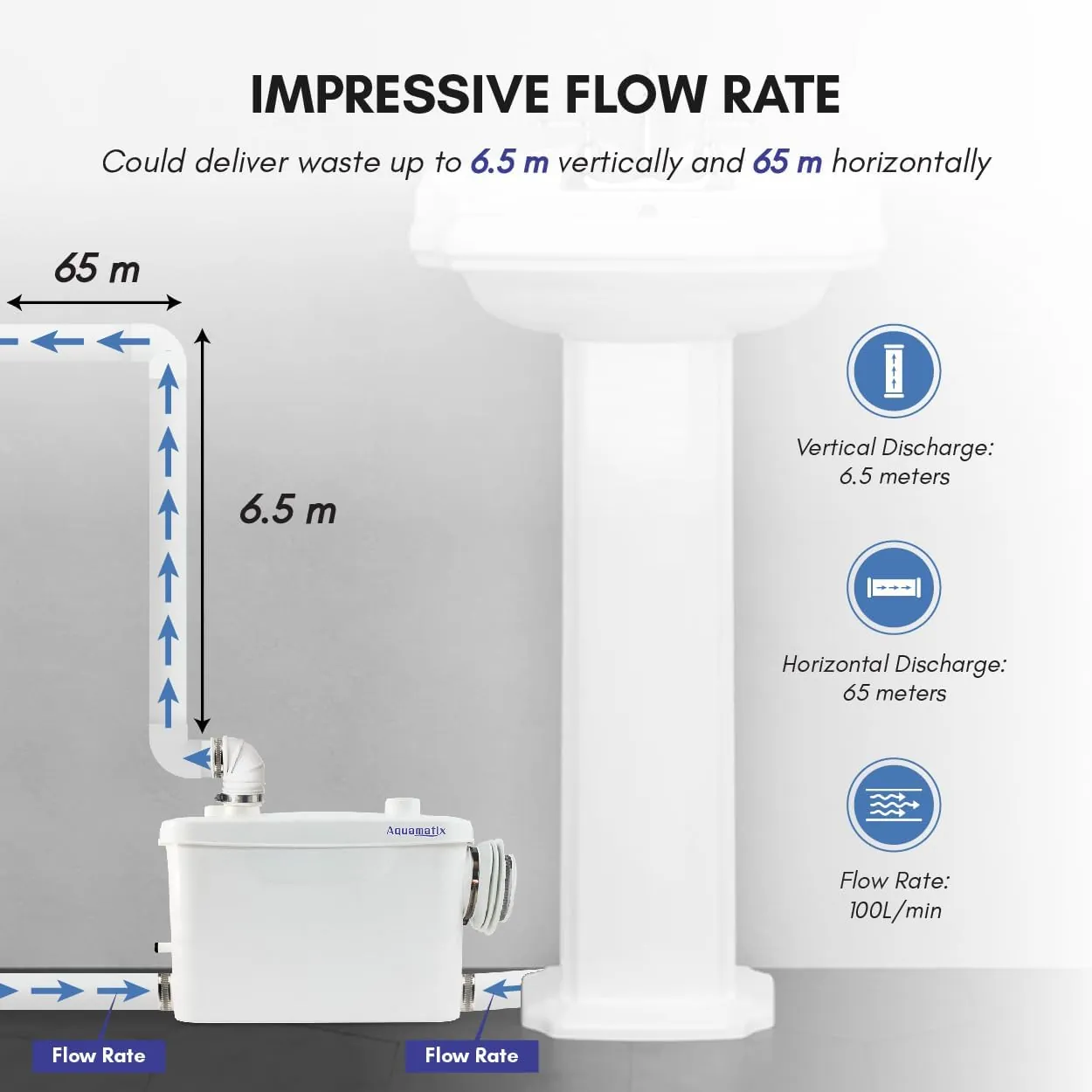

Check before you buy The pump lifts waste 6.5 m straight up, or 65 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 6.5 m, choose a model with more lift.
In the box
Non-return valve 25/32/40 mm, toilet inlet cover, 2 side inlet covers, 2 side inlet connectors, 7 hose clips
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
