Shower pump with low inlets, 250 W
Aquamatix Duscha
The Aquamatix Duscha is a small drain pump equipped with two inlets that are positioned low, making it the ideal solution to install a wide variety of sanitary solutions, including shower, sink and bidet. Its quiet operation and compact dimensions makes it a perfect device for use in tight spaces such as a kitchen cabinet.

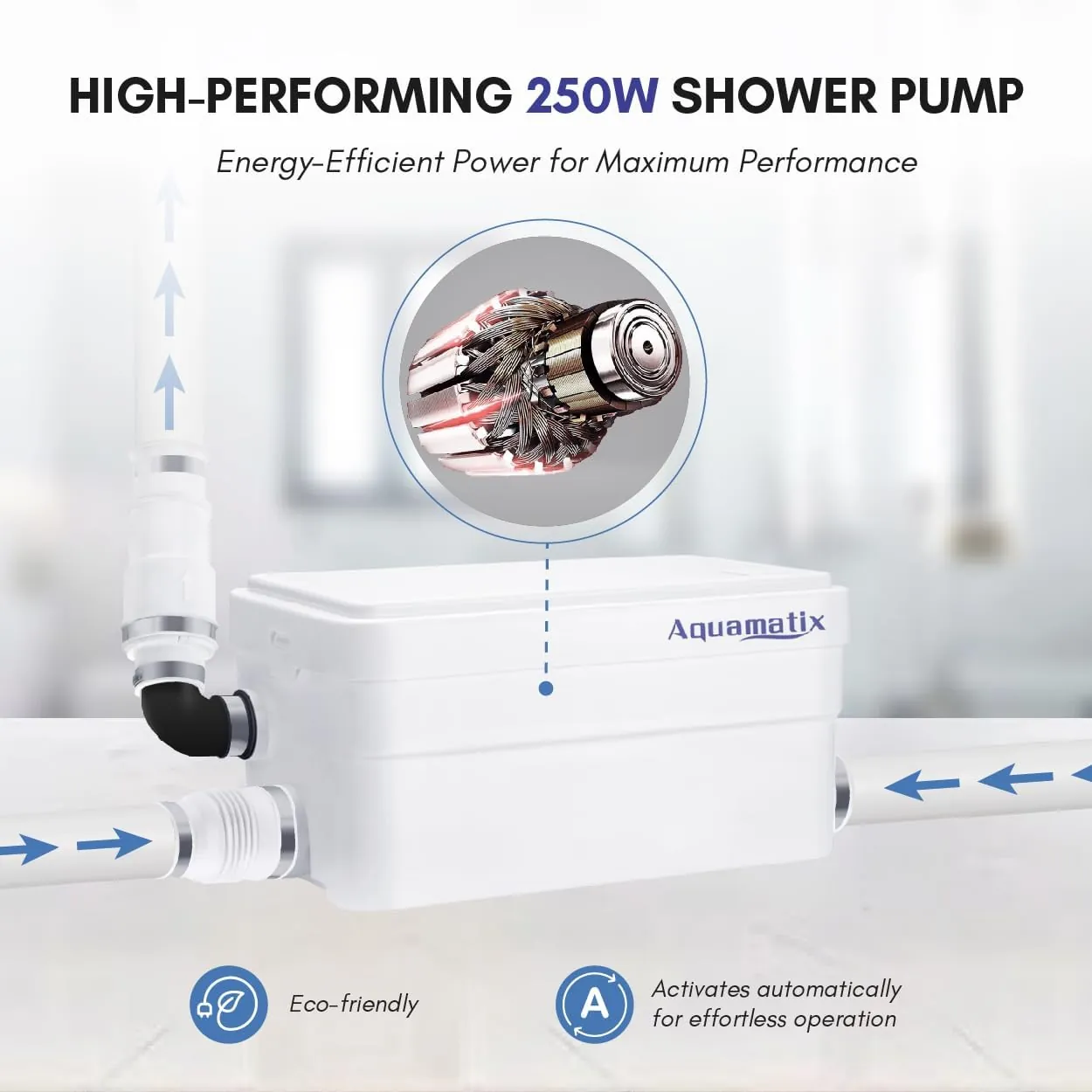

Shower
Washbasin

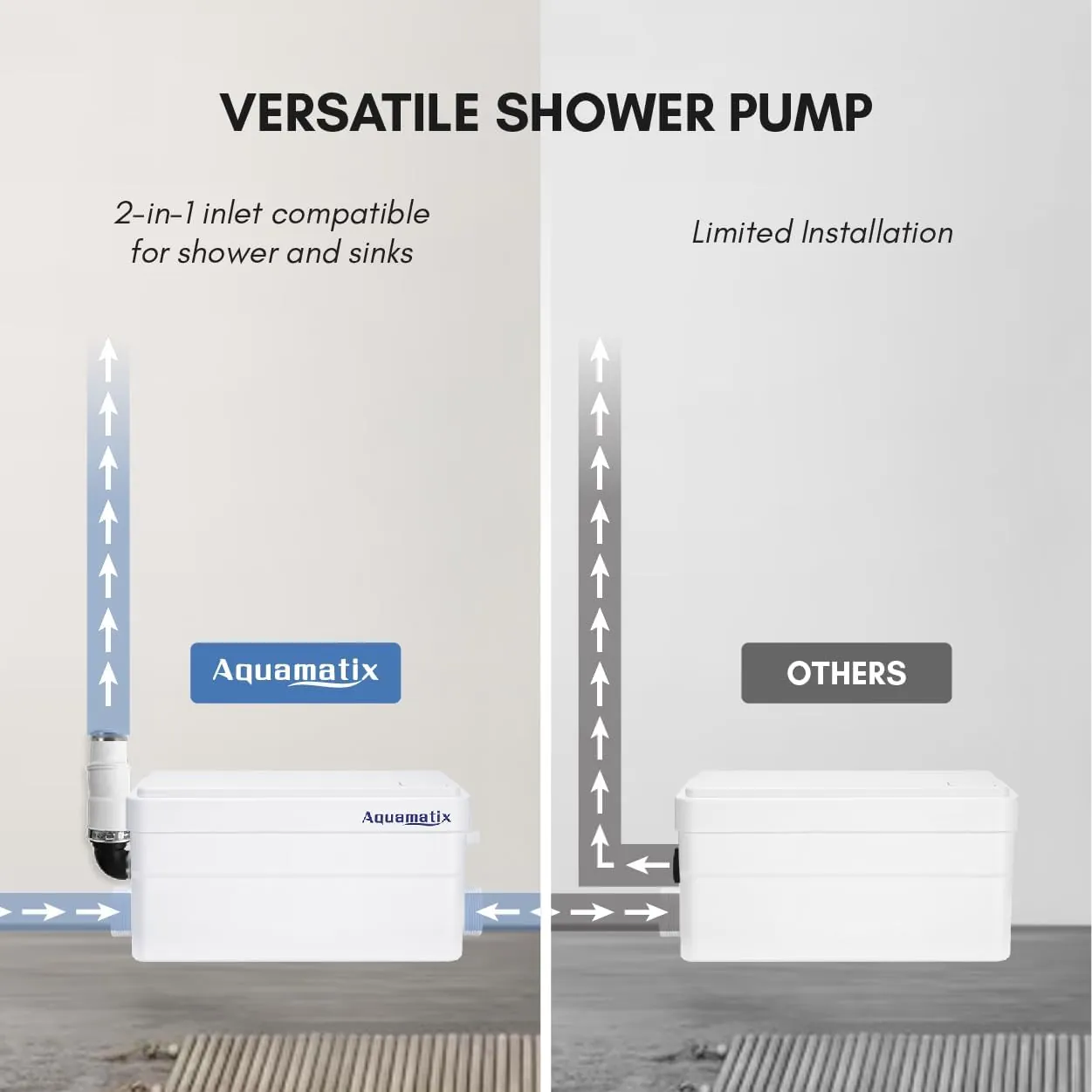

Bathtub- Bidet
Features
- Power saving shower pump
- Silent through new design
- Discharge up to 50m horizontally, 5m vertically
- Pumps away waste water through a 23/28mm pipe
- Fully automatic waste water detection
- Two side inlets
Connections
- Vent hole
- Outlet discharge pipe
- Sanitary fixture inlet
- Sanitary fixture inlet
Specifications
| Power Consumption | 250W |
|---|---|
| Power Supply | 220V - 240V / 50Hz |
| IP Rating | IPx7 |
| Max. Input Flow Rate | 120 L/min |
| Max. Water Temperature | 65 °C |
| Noise Level | 30 - 40 dB |
| Horizontal Discharge | 100 m |
| Vertical Discharge | 10 m |
| Dimensions | 324 mm x 170 mm x 156 mm |
| Carbon Filter | Yes |
| Inlet | 2 Inlets: 40mm |
| Outlet | 23/28 mm |
| Net Weight | 5.0 kg |
| Accessories | 1 x Non return Valve · 2 x Side Inlet Cover · 2 x Jubilee Clip · 2 x Housing Feet · 2 x Screw · 1 x Rubber Feet |
Check before you buy The pump lifts waste 10 m straight up, or 100 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 10 m, choose a model with more lift.
Dimensions
In the box
1 x Non return Valve · 2 x Side Inlet Cover · 2 x Jubilee Clip · 2 x Housing Feet · 2 x Screw · 1 x Rubber Feet
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
