Compact macerator behind the toilet, 400 W
Aquamatix Cubo

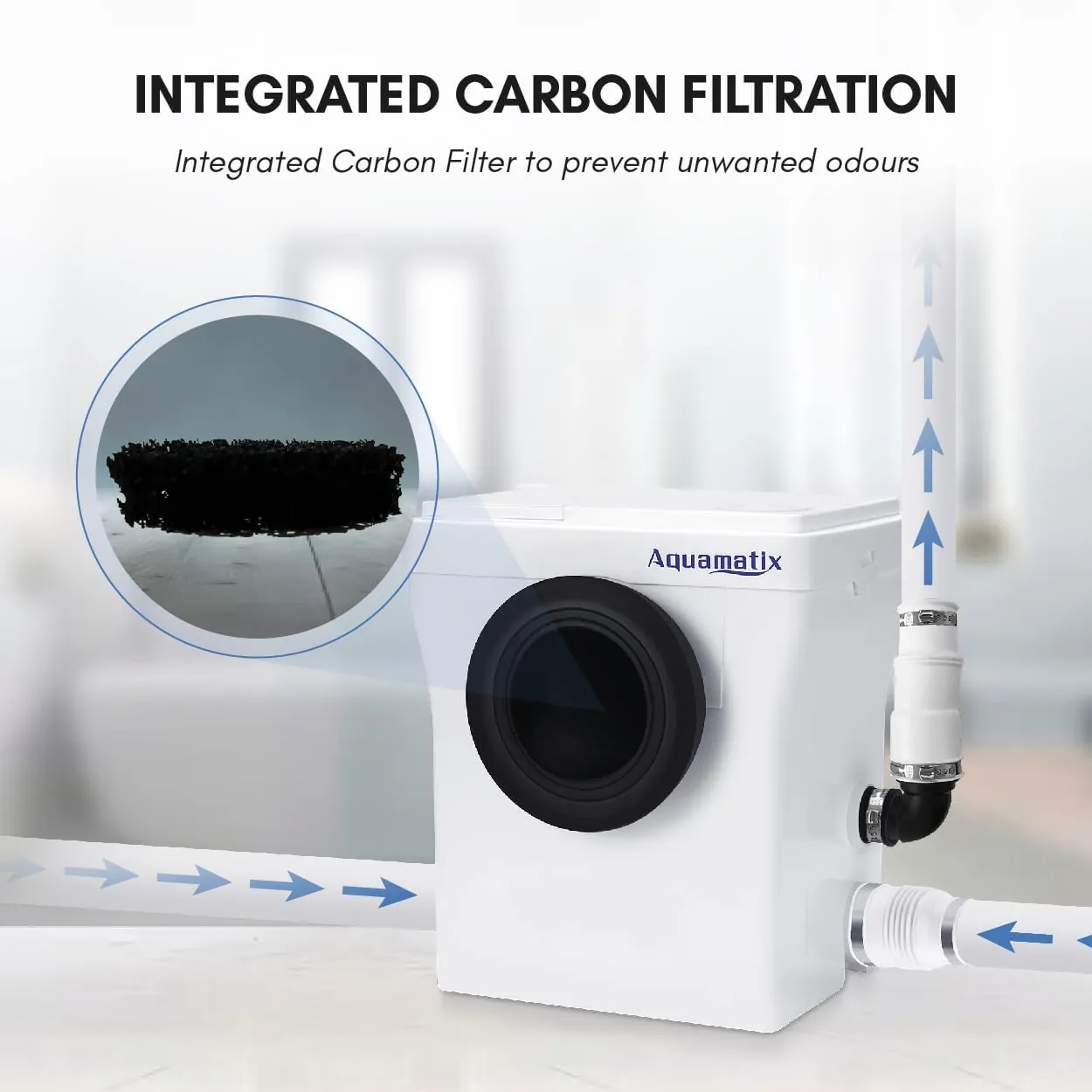

The Aquamatix Cubo is a macerator pump system which is not only compact but also very silent. Thanks to its innovative compact design, the unit can fit in areas that would not be able to accommodate traditional macerator pumps. Its integrated carbon filter and vent system removes any odor. The Cubo is equipped with an additional inlet which allows the unit to be connected to basically any sanitary fixture, such as a washbasin or shower.
Toilet
Washbasin
Shower
Bathtub
Features
- Silent operation
- Discharge up to 70m horizontally, 6.5m vertically
- Does not depend on gravity
- Easy maintenance and servicing
- Compact modular pump system
- Side inlet for washbasin, shower, etc.
Specifications

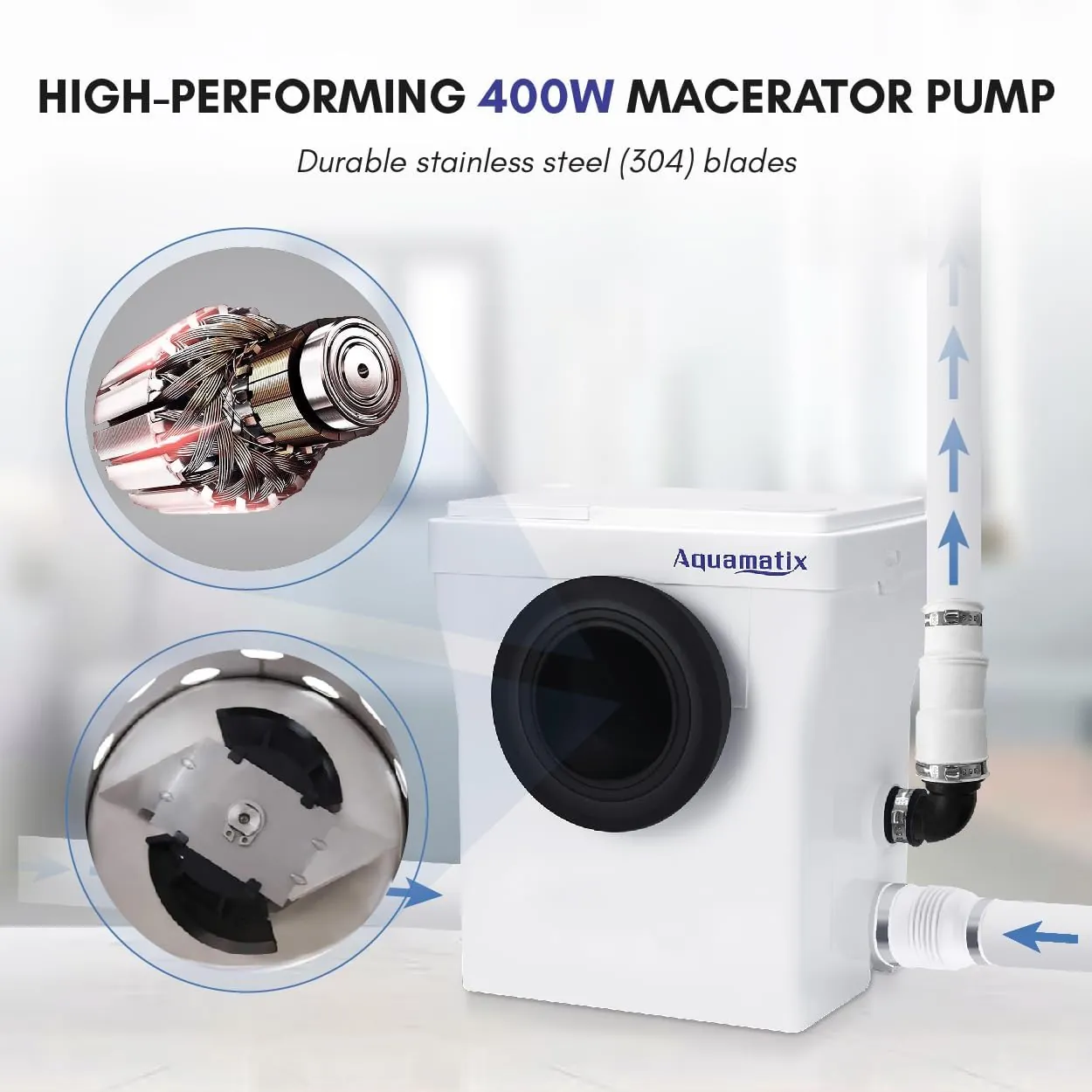

| Power Consumption | 400W |
|---|---|
| Power Supply | 220V - 240V / 50Hz |
| IP Rating | IPx4 |
| Max. Input Flow Rate | 145 L/min |
| Max. Water Temperature | 65 °C |
| Noise Level | 35 - 50 dB |
| Horizontal Discharge | 80 m |
| Vertical Discharge | 8 m |
| Dimensions | 264 mm x 220 mm x 286 mm |
| Carbon Filter | Yes |
| Repair Panel | Yes |
| Blade Material | Stainless Steel |
| Inlet | 1 Toilet Inlet: 100mm · 2 Inlets: 40mm |
| Outlet | 23/28 mm |
| Net Weight | 5.5 kg |
| Accessories | 1 x Non Return Valve · 2 x Side Inlet Connector · 2 x Side Inlet Cover · 6 x Jubilee Clip · 1 x Rubber Feet |

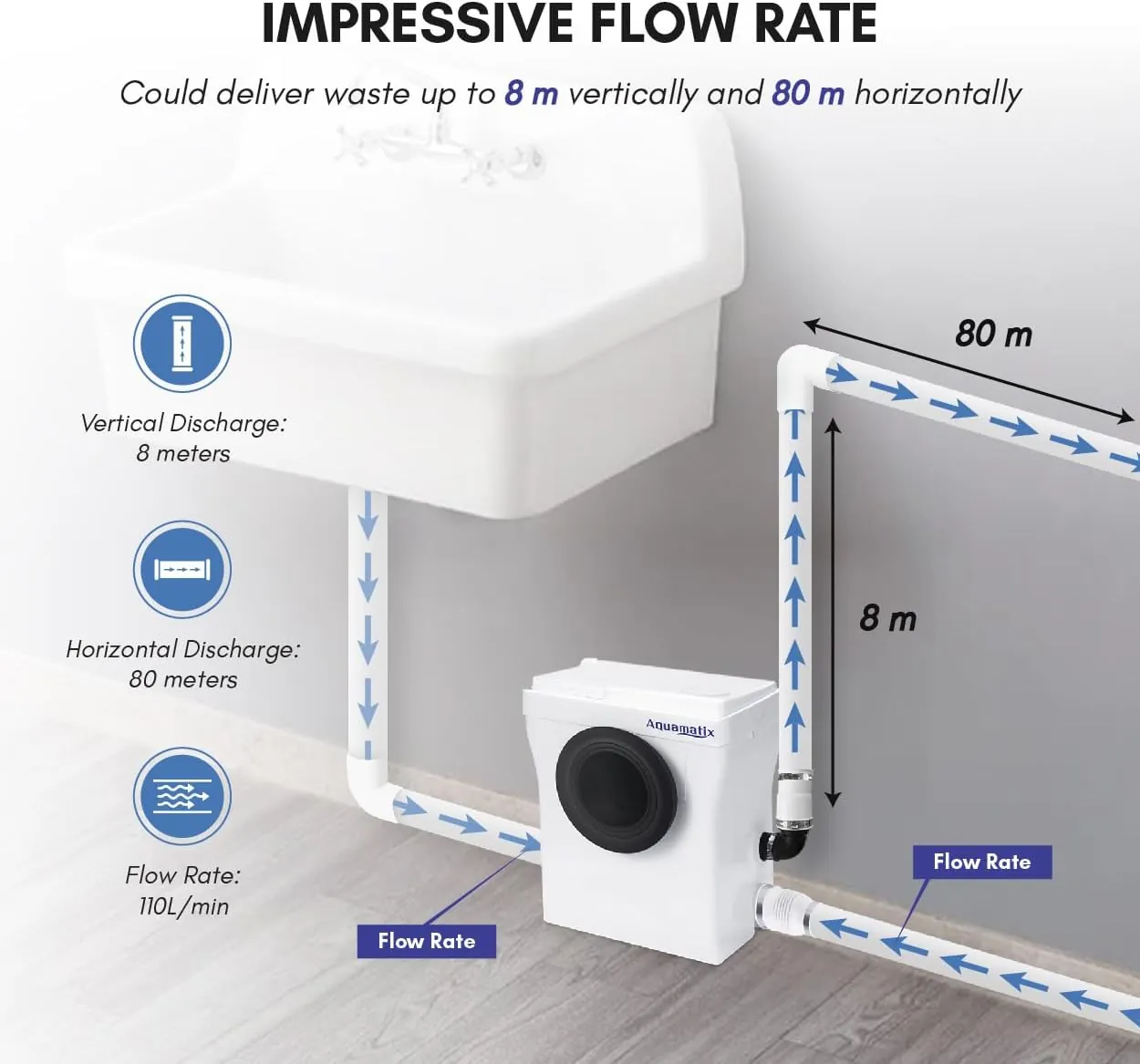

Check before you buy The pump lifts waste 8 m straight up, or 80 m sideways. Measure from the pump to the point where your pipe meets the existing drain: if it is higher than 8 m, choose a model with more lift.
Dimensions
In the box
1 x Non Return Valve · 2 x Side Inlet Connector · 2 x Side Inlet Cover · 6 x Jubilee Clip · 1 x Rubber Feet
Check the carton on arrival and keep it until the unit is running. Report transport damage within 48 hours.
